Retaining walls are essential structures in landscaping and construction, serving to hold back soil and create level areas in sloped terrain. While these walls are designed to withstand significant lateral earth pressure, one of the most critical factors in their longevity and stability is proper drainage. Retaining wall drainage systems play a crucial role in managing water accumulation and pressure, preventing potential structural damage and failure.

In this comprehensive guide, we’ll explore the intricacies of retaining wall drainage systems, covering everything from their purpose and types to installation techniques and maintenance best practices. Whether you’re a homeowner planning a DIY project or a professional contractor looking to refine your skills, this article will provide you with the knowledge and insights needed to create effective and long-lasting retaining wall drainage solutions.

Throughout this article, we’ll delve into the following key topics:

  1. The fundamentals of retaining wall drainage systems
  2. The importance of proper drainage in retaining wall construction
  3. Various types of drainage systems and their components
  4. Step-by-step installation guide
  5. Common mistakes to avoid and expert tips for success
  6. Maintenance strategies to ensure optimal performance

By the end of this guide, you’ll have a comprehensive understanding of retaining wall drainage systems and be well-equipped to implement these crucial elements in your next project.

What is a Retaining Wall Drainage System?

A retaining wall drainage system is a carefully designed network of components that work together to manage water accumulation behind a retaining wall. Its primary purpose is to collect and redirect water away from the wall structure, preventing the buildup of hydrostatic pressure that can lead to wall failure.

These systems typically consist of several key elements:

  1. Drainage pipes or tiles
  2. Gravel or other permeable backfill material
  3. Geotextile fabric
  4. Weep holes or outlets

Retaining wall drainage systems are essential for virtually all types of retaining walls, including:

  1. Gravity walls: These rely on their own weight to resist lateral earth pressure.
  2. Cantilever walls: Reinforced concrete walls with a base slab that extends under the retained soil.
  3. Anchored walls: Walls secured by cables or other tie-backs anchored in the retained soil.
  4. Mechanically stabilized earth (MSE) walls: Constructed with alternating layers of compacted backfill and reinforcement.

While the specific design may vary depending on the wall type and site conditions, the fundamental principle remains the same: to efficiently manage water and prevent it from compromising the wall’s structural integrity.

Why Drainage is Crucial for Retaining Walls

The importance of proper drainage in retaining wall construction cannot be overstated. Here are the primary reasons why a well-designed drainage system is crucial:

  1. Preventing water accumulation and pressure buildup: As water accumulates behind a retaining wall, it exerts additional lateral pressure on the structure. This hydrostatic pressure can be substantial, often exceeding the wall’s design capacity. A proper drainage system allows water to flow away from the wall, significantly reducing this additional pressure.
  2. Avoiding wall failure and structural damage: Without adequate drainage, the combination of soil pressure and water pressure can lead to various forms of wall failure, including: a) Overturning: The wall rotates around its base due to excessive pressure. b) Sliding: The entire wall structure moves horizontally. c) Bearing capacity failure: The soil beneath the wall fails to support its weight. d) Internal failure: Structural damage within the wall itself.
  3. Enhancing wall longevity and stability: By effectively managing water, a good drainage system helps maintain the structural integrity of the retaining wall over time. This leads to: a) Reduced maintenance costs b) Increased lifespan of the wall c) Improved overall stability of the surrounding landscape
  4. Preventing soil erosion: Proper drainage helps control the flow of water, reducing soil erosion behind and around the retaining wall. This is particularly important in areas with high rainfall or where the retained soil is prone to erosion.
  5. Mitigating frost heave: In colder climates, water trapped behind a retaining wall can freeze and expand, causing additional pressure and potential damage. A good drainage system helps remove this water, reducing the risk of frost heave.
  6. Preserving aesthetic appeal: Effective drainage prevents water from seeping through the face of the wall, which can lead to unsightly staining, efflorescence, or vegetation growth.

By addressing these critical issues, a well-designed retaining wall drainage system not only protects your investment but also ensures the safety and stability of the surrounding area.

Types of Retaining Wall Drainage Systems

There are several types of drainage systems commonly used in retaining wall construction. Each has its own advantages and is suited to different situations. Let’s explore the three main types:

  1. Gravel Backfill with Drainage Pipe

Explanation and benefits: This system combines a layer of gravel backfill with a perforated drainage pipe at the base of the wall. The gravel acts as a permeable medium, allowing water to flow freely towards the drainage pipe, which then channels the water away from the wall.

Benefits include:

  • Excellent water management capability
  • Reduces hydrostatic pressure effectively
  • Suitable for various wall types and sizes

Installation process: a) Excavate the area behind the wall to accommodate the drainage system. b) Install a perforated drainage pipe at the base of the wall, sloped for proper water flow. c) Surround the pipe with gravel, typically extending upwards behind the wall. d) Place a layer of geotextile fabric between the gravel and the backfill soil to prevent soil particles from clogging the system.

Retaining Wall Drainage Systems
  1. Weep Holes

Purpose and placement: Weep holes are small openings or pipes placed at regular intervals along the face of the retaining wall. They allow water that has accumulated behind the wall to drain out through these openings.

Advantages:

  • Simple and cost-effective solution
  • Easy to incorporate into various wall designs
  • Provides visible evidence of drainage functionality

Limitations:

  • May not be sufficient for areas with high water tables or heavy rainfall
  • Can be aesthetically unpleasing if not designed carefully
  • Potential for clogging over time
Retaining Wall Drainage Systems
  1. Geotextile Fabric

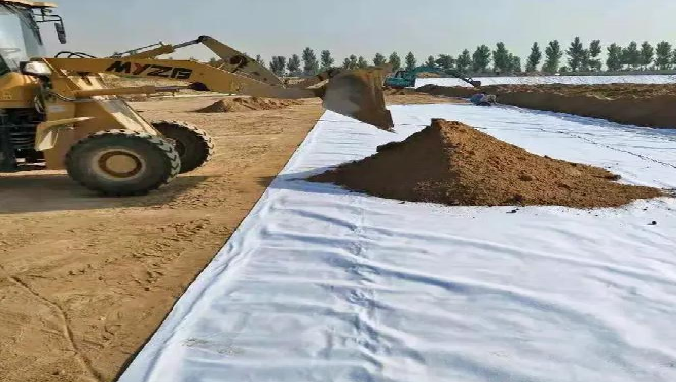

Function and types: Geotextile fabric is a synthetic, permeable textile material used in civil engineering and construction. In retaining wall drainage systems, it serves two primary functions:

a) Filtration: Prevents soil particles from entering and clogging the drainage system while allowing water to pass through. b) Separation: Keeps different soil layers or materials separate, maintaining the integrity of each layer.

Types of geotextile fabrics:

  • Woven: Stronger and more durable, suitable for high-stress applications
  • Non-woven: Excellent filtration properties, ideal for most retaining wall applications

Application in drainage systems: Geotextile fabric is typically used in conjunction with other drainage components. It is placed:

  • Between the native soil and the gravel backfill
  • Around drainage pipes to prevent clogging
  • Behind weep holes to filter water while keeping soil in place

Each of these systems can be used individually or in combination, depending on the specific requirements of the retaining wall project. The choice of system depends on factors such as wall height, soil conditions, climate, and anticipated water load. In many cases, a combination of these systems provides the most effective drainage solution.

Retaining Wall Drainage Systems

Components of an Effective Drainage System

An effective retaining wall drainage system is composed of several key components, each playing a crucial role in managing water and ensuring the wall’s stability. Let’s examine these components in detail:

  1. Drainage Pipes

Drainage pipes are the primary conduits for collecting and redirecting water away from the retaining wall. Key features include:

  • Material: Typically made of perforated PVC or corrugated HDPE (High-Density Polyethylene)
  • Size: Usually 4″ to 6″ in diameter, depending on anticipated water volume
  • Perforations: Allow water to enter the pipe from the surrounding gravel
  • Slope: Installed with a minimum slope of 1/4″ per foot to ensure proper water flow
  1. Gravel and Backfill Material

The gravel layer serves as a permeable medium that allows water to flow freely towards the drainage pipe. Characteristics include:

  • Material: Clean, crushed stone or gravel, typically 3/4″ to 1″ in size
  • Depth: Usually 12″ to 18″ wide, extending from the base to near the top of the wall
  • Compaction: Lightly compacted to maintain permeability while providing stability
Retaining Wall Drainage Systems
  1. Geotextile Fabric

As mentioned earlier, geotextile fabric plays a crucial role in filtration and separation. Key points:

  • Placement: Between native soil and gravel backfill, and around drainage pipes
  • Material selection: Non-woven fabrics are most common for retaining wall applications
  • Overlap: Ensure proper overlap (typically 12″) between fabric sections to prevent soil intrusion
  1. Weep Holes

Weep holes provide additional drainage points along the face of the wall:

  • Spacing: Typically placed every 4 to 6 feet horizontally and every 2 to 3 feet vertically
  • Size: Usually 2″ to 4″ in diameter
  • Material: PVC pipe or formed voids in the wall structure
  • Protection: Often covered with geotextile fabric or gravel to prevent soil erosion
  1. Drainage Outlets

Drainage outlets are the final component, directing water away from the wall:

  • Location: At the ends of drainage pipes or at low points in the system
  • Design: Should direct water away from the wall and surrounding structures
  • Protection: Often include erosion control measures at the outlet point

When designing a retaining wall drainage system, it’s crucial to consider how these components work together to create an effective water management solution. The specific configuration and dimensions of each component may vary based on factors such as wall height, soil conditions, and expected water load.

In the next section, we’ll provide a step-by-step guide to installing a retaining wall drainage system, incorporating these essential components.

Step-by-Step Guide to Installing a Retaining Wall Drainage System

Planning and Design

Before beginning the installation process, it’s crucial to properly plan and design your retaining wall drainage system:

a) Assessing site conditions:

  • Conduct a thorough site analysis, including soil type, water table level, and topography
  • Consider local climate and typical rainfall patterns
  • Identify any existing drainage issues or potential water sources

b) Determining drainage requirements:

  • Calculate the anticipated water load based on wall height and site conditions
  • Determine the appropriate type and size of drainage components
  • Consult local building codes and regulations regarding drainage requirements

Excavation and Preparation

Proper site preparation is essential for an effective drainage system:

a) Preparing the foundation:

  • Excavate the area to the required depth, typically extending at least 12 inches behind the wall
  • Ensure the excavation is level and compacted
  • Slope the base away from the wall at a minimum grade of 1/4 inch per foot

b) Installing the base material:

  • Place a layer of compacted gravel or crushed stone as a base for the wall and drainage system
  • Typically, this layer should be 4-6 inches deep and extend the full width of the excavation

Installing Drainage Components

Now it’s time to install the core elements of your drainage system:

a) Laying drainage pipes:

  • Place the perforated drainage pipe along the base of the wall
  • Ensure the pipe is sloped for proper water flow (minimum 1/4 inch per foot)
  • Connect the pipe to planned outlet locations

b) Adding gravel backfill:

  • Surround the drainage pipe with a layer of clean gravel or crushed stone
  • Continue adding gravel behind the wall as it’s constructed, typically in 6-inch lifts

c) Placing geotextile fabric:

  • Install geotextile fabric between the native soil and gravel backfill
  • Wrap the fabric around the drainage pipe and gravel layer
  • Ensure proper overlap between fabric sections (typically 12 inches)

Constructing the Wall

As you build the retaining wall, integrate the drainage system components:

a) Building the retaining wall structure:

  • Follow manufacturer guidelines or engineering specifications for wall construction
  • Install the first course of blocks or materials on the prepared base

b) Ensuring proper drainage integration:

  • Continue adding gravel backfill behind the wall as construction progresses
  • Install weep holes at regular intervals if required by your design
  • Maintain the integrity of the geotextile fabric throughout construction

Finishing Touches

Complete the installation with these final steps:

a) Final checks and adjustments:

  • Verify that all drainage components are properly installed and connected
  • Check the slope of the drainage pipe and overall system
  • Ensure weep holes are clear and functioning (if applicable)

b) Landscaping considerations:

  • Grade the soil at the top of the wall to direct surface water away from the wall
  • Consider installing a swale or French drain at the top of the wall for additional drainage
  • Plan landscaping to complement the drainage system and prevent erosion

Common Mistakes to Avoid

When installing a retaining wall drainage system, be aware of these common pitfalls:

Ignoring site-specific drainage needs:

  • Mistake: Applying a one-size-fits-all approach to drainage design
  • Solution: Conduct a thorough site analysis and tailor the drainage system to specific conditions

Using inadequate materials:

  • Mistake: Opting for low-quality or inappropriate drainage components to cut costs
  • Solution: Invest in high-quality, appropriate materials suitable for your specific project

Improper installation techniques:

  • Mistake: Incorrect placement of drainage components or poor construction practices
  • Solution: Follow proper installation procedures and consult professional guidance when needed

Neglecting proper backfill practices:

  • Mistake: Using native soil as backfill material or over-compacting gravel layers
  • Solution: Use clean, properly-sized gravel and compact in appropriate lifts

Failing to consider long-term maintenance:

  • Mistake: Designing a system that’s difficult to access or maintain
  • Solution: Plan for easy access to key drainage components for future maintenance

Maintenance Tips for Retaining Wall Drainage Systems

Regular maintenance is crucial for ensuring the long-term effectiveness of your retaining wall drainage system:

  1. Regular inspection and cleaning:
  • Conduct visual inspections at least twice a year, especially after heavy rainfall
  • Check for signs of water damage, soil erosion, or wall movement
  • Clean weep holes and drainage outlets to ensure they remain unobstructed
  1. Checking for blockages and damage:
  • Inspect drainage pipes for signs of clogging or damage
  • Look for signs of soil intrusion into the gravel backfill
  • Check geotextile fabric for tears or displacement
  1. Repairing any issues promptly:
  • Address any identified problems as soon as possible to prevent further damage
  • Consult a professional for complex repairs or if you’re unsure about the appropriate solution
  1. Maintaining proper landscaping:
  • Keep the area around the wall free from deep-rooted plants that could interfere with drainage
  • Ensure that irrigation systems are not directing excess water towards the retaining wall
  1. Monitoring drainage performance:
  • Observe how the system handles water during and after rainfall
  • Look for signs of water seepage or pooling near the wall

Expert Tips and Best Practices

To further enhance the effectiveness of your retaining wall drainage system, consider these expert recommendations:

  1. Oversizing drainage components:
  • Tip: When in doubt, opt for larger drainage pipes and more extensive gravel layers
  • Benefit: Provides a safety margin for unexpected water loads
  1. Incorporating redundancy:
  • Tip: Use multiple drainage methods (e.g., combining gravel backfill, geotextile fabric, and weep holes)
  • Benefit: Ensures continued functionality even if one component fails
  1. Utilizing modern materials:
  • Tip: Consider using geocomposite drainage materials that combine filtration and drainage in one product
  • Benefit: Can simplify installation and improve overall system efficiency
  1. Implementing proper surface water management:
  • Tip: Install gutters, downspouts, and surface drains to divert water away from the retaining wall
  • Benefit: Reduces the load on the primary drainage system
  1. Considering site-specific solutions:
  • Tip: In areas with high water tables, consider installing a secondary drainage system or sump pump
  • Benefit: Provides additional protection against groundwater intrusion

Case Study: Innovative Drainage Solution for a High-Risk Site

In a recent project in Seattle, Washington, engineers faced the challenge of designing a drainage system for a 20-foot tall retaining wall in an area with heavy rainfall and poor soil conditions. The solution involved:

  • A combination of traditional gravel backfill and modern geocomposite drainage materials
  • A dual-pipe system with a primary drainage pipe and a secondary overflow pipe
  • Integration of a series of horizontal drains into the wall face
  • Implementation of a comprehensive surface water management system

The result was a highly effective drainage solution that has performed exceptionally well, even during periods of unusually heavy rainfall.

Frequently Asked Questions (FAQ)

  1. What happens if my retaining wall doesn’t have proper drainage?

Without proper drainage, water can accumulate behind the retaining wall, leading to several problems:

  • Increased hydrostatic pressure, which can cause wall failure
  • Soil erosion and instability
  • Frost heave in colder climates
  • Premature deterioration of the wall materials
  • Unsightly water seepage and staining on the wall face

In severe cases, inadequate drainage can lead to complete wall collapse, potentially causing significant property damage and safety hazards.

  1. Can I retrofit a drainage system to an existing retaining wall?

While it’s always best to incorporate drainage during initial construction, it is possible to retrofit drainage to an existing retaining wall in some cases:

  • Install a French drain along the top of the wall to intercept surface water
  • Add weep holes by drilling through the wall at regular intervals
  • Excavate behind the wall (if accessible) to add a gravel layer and drainage pipe

However, retrofitting can be challenging and may not be as effective as a properly installed system during initial construction. It’s advisable to consult with a professional engineer or landscaper to assess the feasibility and best approach for your specific situation.

  1. How often should I inspect my retaining wall drainage system?

Regular inspections are crucial for maintaining the effectiveness of your drainage system:

  • Conduct visual inspections at least twice a year, ideally in spring and fall
  • Perform additional checks after heavy rainfall or severe weather events
  • Pay special attention to drainage outlets, weep holes, and the wall face for signs of water damage or soil erosion

By maintaining a regular inspection schedule, you can identify and address potential issues before they become serious problems.

  1. What are the best materials for a retaining wall drainage system?

The choice of materials depends on your specific project requirements, but generally:

  • Drainage pipes: Perforated PVC or corrugated HDPE pipes are commonly used
  • Gravel backfill: Clean, crushed stone or gravel (typically 3/4″ to 1″ in size)
  • Geotextile fabric: Non-woven fabrics are most common for retaining wall applications
  • Weep holes: PVC pipe or formed voids in the wall structure

Modern geocomposite drainage materials, which combine filtration and drainage functions, are also becoming increasingly popular due to their efficiency and ease of installation.

  1. How do I know if my drainage system is working effectively?

Signs of a well-functioning drainage system include:

  • No visible water seepage on the wall face during or after rainfall
  • Absence of soil erosion or washout at the base of the wall
  • Stable wall structure with no signs of bulging or movement
  • Clear, unobstructed weep holes and drainage outlets
  • No pooling water near the base of the wall

If you notice any issues such as water staining, soil erosion, or wall movement, it may indicate that your drainage system is not functioning optimally and requires attention.


Retaining wall drainage systems play a crucial role in ensuring the longevity, stability, and effectiveness of retaining walls. By properly managing water accumulation and pressure, these systems protect against structural damage, soil erosion, and potential wall failure.

Throughout this comprehensive guide, we’ve explored the fundamental aspects of retaining wall drainage, including:

  1. The critical importance of proper drainage in retaining wall construction
  2. Various types of drainage systems and their components
  3. Step-by-step installation procedures
  4. Common mistakes to avoid and expert tips for success
  5. Maintenance strategies to ensure optimal performance

Key takeaways from this guide include:

  • The necessity of tailoring drainage solutions to site-specific conditions
  • The importance of using high-quality materials and proper installation techniques
  • The value of regular inspection and maintenance in preserving system effectiveness
  • The potential for combining traditional methods with modern materials for optimal results

As you approach your retaining wall project, whether as a DIY enthusiast or a professional contractor, remember that a well-designed and properly installed drainage system is not an optional feature—it’s an essential component that can make the difference between a long-lasting, stable structure and a potential failure.

We encourage you to apply the knowledge gained from this guide to your retaining wall projects, always keeping in mind the unique requirements of each site. When in doubt, don’t hesitate to consult with professional engineers or landscapers who can provide expert guidance tailored to your specific needs.

By prioritizing effective drainage in your retaining wall design and construction, you’re not just protecting your investment—you’re ensuring the safety, stability, and aesthetic appeal of your landscape for years to come.

Leave a Reply

Your email address will not be published. Required fields are marked *

This site uses Akismet to reduce spam. Learn how your comment data is processed.
