A laser level is one of the highest-value tools a Nigerian building site can own — it turns a job that used to need two people, a water level hose, and a lot of shouting across the compound into something one person can do accurately in minutes. If you’re new to using one, this guide walks through what it does, how to set it up correctly, and the site tasks it’s most useful for, from foundation levels to block coursing and ceiling lines.
What Is a Laser Level and Why Use One?
A laser level projects a perfectly straight, self-levelling laser line or point that you can reference from anywhere on site, instead of relying on a spirit level moved from point to point or a water level hose carried between two people. The core benefit is accuracy over distance: a small error at one end of a foundation trench, carried across 15 or 20 metres by hand tools, can throw off your entire slab or block coursing. A laser level removes most of that human error and cuts the two-person job down to one.
Types of Laser Levels Used on Nigerian Sites
| Type | What It Projects | Best For |
|---|---|---|
| Line / cross-line laser | One or two straight lines (horizontal, vertical, or both) | DPC lines, block coursing, tiling, ceiling and partition layout |
| Rotary laser level | A full 360° rotating horizontal (or vertical) plane | Foundation excavation, large slab screeding, external site levelling |
| Dot / plumb laser | Single reference points, often straight up and down | Column alignment, transferring a point between floors |
For most small-to-medium residential sites in Nigeria, a rotary laser level covers the widest range of uses — foundation levels, external levelling, and slab work — which is why it’s usually the first laser tool site owners invest in, sometimes alongside a simpler cross-line laser for indoor finishing work later in the build.
Before You Start: Setup and Safety Checks
- Check the tripod ground. Set up on firm, undisturbed ground — a tripod leg sinking slightly into loose backfill mid-reading will throw your levels off without any obvious warning sign.
- Inspect the instrument. Confirm the battery is charged, the lens is clean, and — if the unit has been dropped or transported roughly — run a quick self-level check before relying on it for anything structural.
- Protect eyes on site. Laser levels used in construction are low-powered and generally safe, but avoid staring directly into the beam, and brief other workers on site about where the laser line is running.
- Have your benchmark ready. Know in advance which point on site (a peg, a DPC line, a fixed structural point) you’re using as your reference height before you start setting up.
Step-by-Step: How to Use a Laser Level on Site

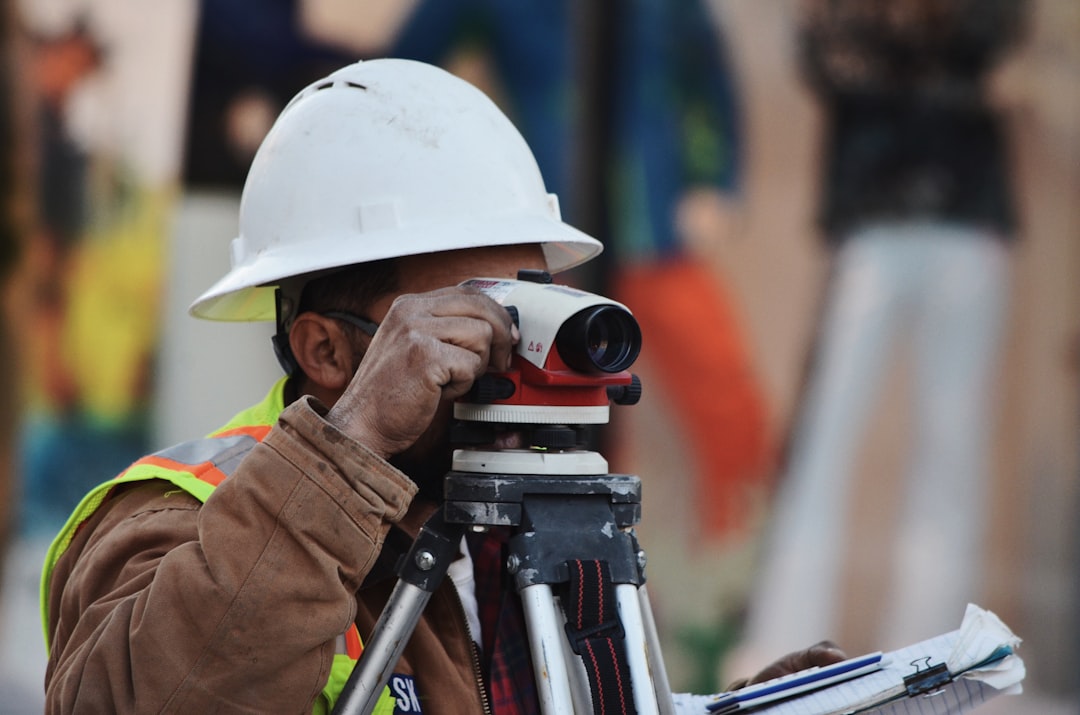

Step 1: Set Up the Tripod
Position the tripod roughly central to the area you’re working on, spread the legs to a stable, wide stance, and press each leg firmly into the ground. Use the tripod’s built-in bubble level (if fitted) to get it roughly level before mounting the instrument — this reduces how much self-levelling work the laser unit has to do afterward.
Step 2: Mount and Power On
Screw the laser level onto the tripod head, power it on, and unlock the self-levelling mechanism (most units have a physical lock for transport that must be released before the instrument will level itself). Give it a few seconds — you’ll typically hear or see an indicator once it has finished self-levelling and locked onto a true horizontal (or vertical) plane.
Step 3: Set Your Reference Height
Using a levelling staff or a tape measure against the laser line/point, establish the height of the laser relative to your chosen benchmark. Write this reference height down (or mark it on a peg) before you start taking readings elsewhere — every measurement you take afterward will be relative to this number.
Step 4: Take and Transfer Readings
Move the receiver or staff to each point you need to check — a trench base, a column set-out point, a DPC line — and read the height directly off the laser line or, for rotary lasers used outdoors in bright light, off a laser receiver clipped to the staff. The difference between your benchmark reading and each new reading tells you exactly how much higher or lower that point is, without needing a second person to hold a reference at the other end.
Step 5: Apply It to Common Site Tasks
- Foundation excavation: Confirm trench bases are cut to a uniform, design-specified depth before blinding concrete is poured.
- DPC (damp-proof course) line: Mark a continuous, accurate DPC line around the entire building perimeter in one setup, instead of transferring a water-level reading wall by wall.
- Block coursing: Check that block courses are staying level across long wall runs, catching a masonry error early rather than after several more courses have gone up on top of it.
- Slab and screed levels: Set consistent screed pegs or profile boards across a floor slab so the concrete finishes to a true, even level.
- Ceiling and false ceiling lines: Mark a level line around a room for ceiling or ceiling-grid installation, especially useful where the wall tops themselves aren’t perfectly level.
Common Mistakes to Avoid
- Not re-checking after moving the tripod. Every time the tripod is repositioned, re-confirm the self-level and re-establish your reference height — don’t assume the old reading still applies.
- Working on unstable ground. Loose, freshly backfilled, or waterlogged ground near a tripod leg is one of the most common causes of a laser level “drifting” mid-task.
- Using a damaged or uncalibrated unit. A laser level that’s been dropped can throw readings off by a small but real margin — have it checked or recalibrated periodically, especially after any impact.
- Reading a rotary laser in strong sunlight without a receiver. Bright daylight can make the laser line nearly invisible to the naked eye outdoors — use a laser receiver rather than trying to eyeball the line.
- Skipping the benchmark step. Taking readings without first fixing a clear reference height turns your numbers into relative guesses instead of an accurate, traceable set of levels.
Laser Level vs Traditional Levelling Methods
| Method | Accuracy Over Distance | Labour Needed | Typical Use Today |
|---|---|---|---|
| Laser level | High — self-levelling, consistent across the whole site | One person | Foundation, DPC, slab, coursing, ceiling lines |
| Water level (hose) | Reasonable over short-to-medium runs if used carefully | Two people | Still common on small sites, or as a laser backup |
| Spirit level | Good only over short, direct spans | One person | Localised checks — a single wall face, a door frame |
A laser level doesn’t fully replace a spirit level on site — you’ll still reach for a spirit level for quick, localised checks — but for anything spanning more than a few metres, it’s a clear step up in both speed and accuracy over a water level or a spirit level alone.
Maintenance and Care Tips
- Store the unit in its case when not in use, away from dust and direct sun in a site container or office rather than left exposed on the tripod overnight.
- Wipe the lens with a soft, dry cloth — avoid solvents that can damage the lens coating.
- Remove batteries during extended periods of non-use to avoid corrosion damage to the battery compartment.
- Have the instrument professionally recalibrated periodically, and always after a hard knock or drop, before trusting it on anything structural again.
Getting the Right Equipment for Your Project
Whether you’re setting up your own site tools or want guidance on which laser level suits your project’s scale, StructoTag can help you plan equipment needs alongside the rest of your build — and if you’ve already worked through your Bill of Quantities, equipment costs like this are worth budgeting for alongside materials rather than as an afterthought.
Frequently Asked Questions
Do I need a laser receiver to use a laser level outdoors?
For a rotary laser level used in bright daylight, yes — a laser receiver clipped to a staff makes the line easy to detect even when it’s not visible to the naked eye. Indoor line lasers are usually bright enough to read directly.
How often should a laser level be calibrated?
As a general rule, check calibration every few months with regular use, and always after any drop or hard knock, before relying on it for foundation or structural levels again.
Can one person operate a laser level alone?
Yes — that’s the main advantage over a traditional water level, which typically needs two people. Once the tripod is set up and self-levelled, one person can take readings anywhere on site.
What’s the difference between a line laser and a rotary laser?
A line laser projects a fixed straight line (or cross of two lines) over a shorter range, suited to indoor and close-range work. A rotary laser spins a full 360° plane and covers a much wider outdoor area, making it better suited to foundation and site-wide levelling.
Is a laser level worth buying for a single small building project?
For a one-off small build, renting may make more practical sense than buying outright — weigh the rental cost against how many days you’ll actually need the instrument, and reach out to StructoTag directly for guidance based on your specific project size.
A laser level earns its place on a Nigerian building site by turning a slow, two-person, error-prone job into something one person can do quickly and accurately — from the first foundation trench to the last ceiling line. Set it up on stable ground, always re-establish your benchmark after moving it, and pair it with a laser receiver outdoors, and it will save far more time than it costs across the life of a project.
