Foundation engineering is a critical aspect of construction, ensuring that structures stand on solid ground. One of the most vital techniques used to enhance foundation stability is grouting. Grouting involves injecting a fluid material into the soil or rock formations to fill voids, improve strength, and reduce permeability. This article delves into the essential role that grouting plays in foundation engineering, exploring the various techniques and applications that make it a cornerstone of modern construction practices.
What is Grouting?
Grouting, in the context of foundation engineering, refers to the process of injecting a pumpable material, typically a mixture of cement, water, sand, and sometimes additives, into the ground to improve its properties. The primary objectives of grouting are to increase the load-bearing capacity of the soil, fill voids, reduce permeability, and provide additional stability to the foundation. The choice of grouting material and technique depends on the specific requirements of the project and the type of soil or rock being treated.
Importance of Grouting in Construction
Grouting plays a pivotal role in the construction industry by enhancing the structural integrity of buildings, bridges, dams, and other infrastructures. It is particularly crucial in areas with weak or unstable soils, where traditional foundation methods may not provide adequate support. By improving the soil’s strength and stability, grouting helps prevent settlement, cracking, and other forms of structural failure. Additionally, it can be used to repair existing structures, extend their lifespan, and ensure they meet modern safety standards.

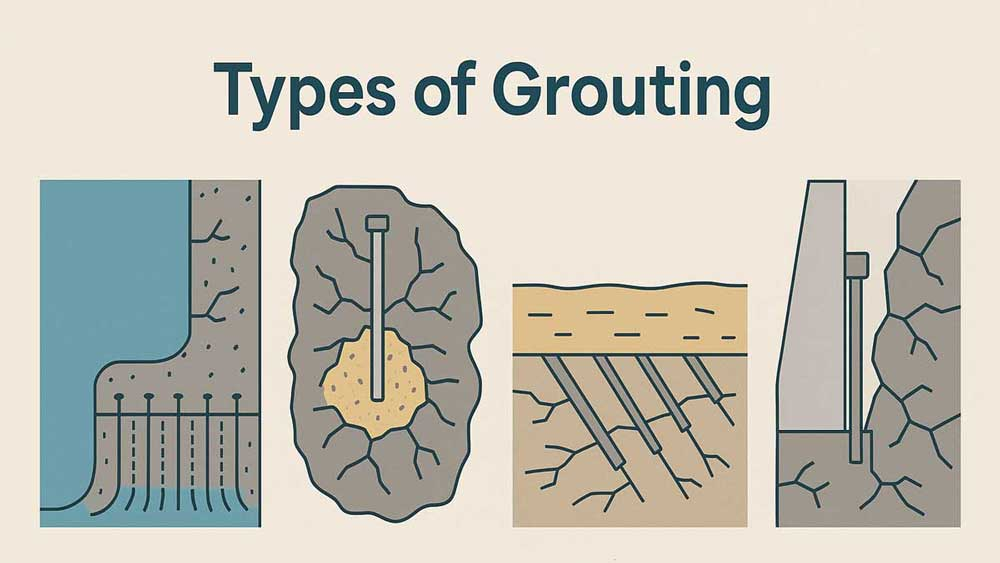

Types of Grouting Techniques
Grouting techniques have evolved over the years, with different methods being developed to address specific challenges in foundation engineering. Below are some of the most commonly used grouting techniques:
Cementitious Grouting
Cementitious grouting is the most traditional form of grouting, involving the use of cement-based materials. This technique is commonly used for filling voids, stabilizing loose soils, and reinforcing foundation elements. The grout mixture is typically composed of cement, water, and sand, with the option to include additives to enhance flowability or setting time.
Chemical Grouting
Chemical grouting involves the injection of chemical solutions into the ground to improve soil properties. These chemicals react with the soil to create a solidified mass that increases the strength and impermeability of the ground. Common chemicals used in this method include sodium silicate, polyurethane, and epoxy resins. Chemical grouting is particularly effective in fine-grained soils where cementitious grouts may not penetrate effectively.
Compaction Grouting
Compaction grouting is a technique used to improve the density and strength of loose soils. This method involves injecting a stiff, low-mobility grout into the ground, which compacts the surrounding soil as it expands. Compaction grouting is often used to lift and stabilize structures that have experienced settlement, as well as to improve the load-bearing capacity of the ground in new construction projects.

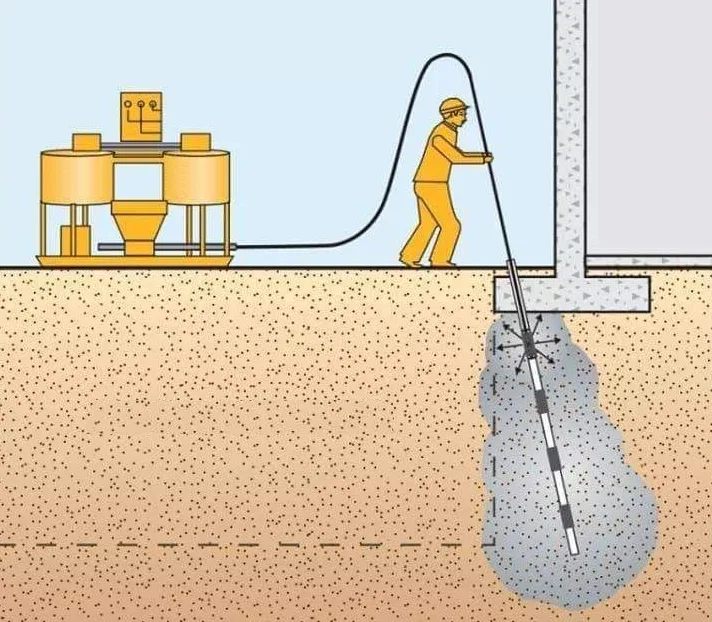

Jet Grouting
Jet grouting is a highly versatile and effective technique that uses high-pressure jets to inject grout into the soil. This method can create solidified columns or panels in the ground, which can be used to support foundations, create underground walls, or stabilize slopes. Jet grouting is particularly useful in challenging ground conditions, such as highly permeable soils or areas with obstructions.
Permeation Grouting
Permeation grouting involves the injection of a low-viscosity grout into the ground, where it permeates through the voids and pores in the soil or rock. This technique is primarily used to reduce the permeability of the ground, making it ideal for applications such as groundwater control, dam foundation treatment, and tunnel stabilization. Permeation grouting can be performed using both cementitious and chemical grouts, depending on the project requirements.
Comparison of Grouting Techniques
Each grouting technique offers distinct advantages and is suited for specific applications. Cementitious grouting is cost-effective and widely used but may not be suitable for fine soils. Chemical grouting provides excellent penetration in fine-grained soils but can be more expensive and complex. Compaction grouting is ideal for increasing soil density and stabilizing structures but may not address permeability issues. Jet grouting offers versatility and high strength but requires specialized equipment and expertise. Permeation grouting is highly effective for reducing permeability but may require careful planning to achieve uniform treatment.
Applications of Grouting in Foundation Engineering
Grouting is a versatile technique with a wide range of applications in foundation engineering. Below are some of the key areas where grouting plays a critical role:
Soil Stabilization
Soil stabilization is one of the primary applications of grouting in foundation engineering. Weak or loose soils can compromise the stability of a foundation, leading to settlement, cracking, and even structural failure. Grouting techniques, such as compaction grouting and chemical grouting, are used to strengthen the soil and enhance its load-bearing capacity, ensuring a stable foundation for construction projects.
Sealing and Waterproofing
Grouting is also widely used for sealing and waterproofing applications. Permeation grouting, in particular, is effective in reducing the permeability of soils and rocks, making it an ideal solution for controlling groundwater flow in foundation excavations, tunnels, and dam foundations. By creating a water-tight barrier, grouting helps prevent water ingress and protects structures from water-related damage.
Strengthening Existing Structures
In addition to new construction, grouting is frequently used to strengthen and repair existing structures. For example, cementitious grouting can be used to fill voids and cracks in aging foundations, restoring their strength and extending their lifespan. Chemical grouting can also be employed to stabilize soils beneath structures that have experienced differential settlement, preventing further movement and damage.
Void Filling and Settlement Control
Void filling and settlement control are critical applications of grouting in foundation engineering. Voids can occur naturally or as a result of human activities, such as mining or tunneling. Left unaddressed, these voids can lead to ground subsidence and structural instability. Grouting techniques, such as compaction grouting and jet grouting, are used to fill these voids, stabilize the ground, and prevent further settlement.
Applications in Tunneling and Underground Construction
Grouting plays a vital role in tunneling and underground construction, where ground stability and water control are paramount. Permeation grouting is commonly used to stabilize the ground ahead of tunnel boring machines, while jet grouting can create underground walls to prevent ground collapse. Additionally, grouting is used to seal joints and cracks in tunnel linings, ensuring the long-term durability and safety of the structure.
Advantages of Grouting in Foundation Engineering
Grouting offers numerous benefits in foundation engineering, making it a preferred technique in many construction projects. Some of the key advantages include:
Improved Load-Bearing Capacity
One of the primary benefits of grouting is its ability to improve the load-bearing capacity of the soil. By filling voids and compacting loose soils, grouting enhances the strength and stability of the ground, allowing it to support heavier loads. This is particularly important in areas with weak or variable soil conditions, where traditional foundation methods may not provide adequate support.
Enhanced Durability and Stability
Grouting not only improves the load-bearing capacity of the soil but also enhances the overall durability and stability of the foundation. By reducing soil permeability and increasing cohesion, grouting helps protect the foundation from water-related damage, erosion, and other forms of degradation. This, in turn, extends the lifespan of the structure and reduces the need for costly repairs and maintenance.
Cost-Effectiveness
While grouting can be a complex and specialized technique, it is often more cost-effective than alternative foundation methods, particularly in challenging ground conditions. By improving the properties of the existing soil, grouting can reduce the need for extensive excavation, piling, or other ground improvement techniques. Additionally, grouting can be used to repair and strengthen existing structures, avoiding the need for complete foundation replacement.
Versatility in Different Soil Conditions
Grouting is a highly versatile technique that can be adapted to a wide range of soil and rock conditions. Whether dealing with loose sands, clayey soils, or fractured rock, there is a grouting method that can be tailored to meet the specific needs of the project. This versatility makes grouting an invaluable tool in foundation engineering, where ground conditions can vary significantly from one site to another.
Case Studies Highlighting Success Stories
Numerous case studies demonstrate the effectiveness of grouting in foundation engineering. For example, grouting was successfully used to stabilize the foundations of a historic building that had experienced significant settlement due to soil erosion. By injecting cementitious grout into the ground beneath the structure, engineers were able to halt further settlement, restore the building’s structural integrity, and preserve its historic value. Similarly, in a large-scale infrastructure project, jet grouting was employed to stabilize the ground during the construction of an underground
the grouting process to ensure that the objectives are being met. This involves regular testing of grout samples, monitoring injection pressures, and conducting post-grouting inspections to assess the effectiveness of the treatment. Non-destructive testing methods, such as ground-penetrating radar (GPR) or borehole logging, may also be employed to evaluate the grout’s distribution and verify that the desired improvements in soil properties have been achieved.
Innovations and Emerging Trends in Grouting
As foundation engineering continues to evolve, new innovations and trends in grouting are emerging to address the growing demands of modern construction. These advancements are enhancing the effectiveness, efficiency, and environmental sustainability of grouting techniques.
Advances in Grouting Materials
One of the most significant areas of innovation is the development of advanced grouting materials. These materials include high-performance cementitious grouts that offer superior strength and durability, as well as new chemical grouts that provide enhanced penetration and stability in challenging soil conditions. In addition, environmentally friendly grout formulations are being developed to reduce the ecological impact of grouting operations.
Use of Robotics and Automation in Grouting
The integration of robotics and automation is transforming the way grouting is performed. Automated grouting systems can precisely control the injection process, reducing human error and improving the consistency of the treatment. Robotic systems are particularly useful in environments that are difficult or dangerous for human workers, such as deep underground tunnels or contaminated sites. These technologies are not only improving safety but also increasing the efficiency and accuracy of grouting operations.
Sustainable and Eco-Friendly Grouting Practices
As the construction industry places greater emphasis on sustainability, grouting practices are also adapting to minimize their environmental footprint. This includes the use of low-impact materials, recycling of excess grout, and the development of techniques that reduce the need for extensive ground disturbance. Additionally, there is a growing focus on monitoring and mitigating the environmental impacts of grouting, such as the potential for groundwater contamination or soil displacement.
Expert Opinions and Industry Insights
Grouting in foundation engineering is a complex and specialized field, and insights from industry experts are invaluable in understanding the nuances of different techniques and their applications. Below are some perspectives from professionals in the field:
Interviews with Foundation Engineering Experts
According to Dr. John Smith, a leading geotechnical engineer, “Grouting remains one of the most adaptable and effective techniques for ground improvement in challenging conditions. The key to successful grouting is not just in the materials used, but in the careful planning and execution of the technique. Advances in technology are making it possible to tackle projects that would have been unfeasible just a decade ago.”
Engineer Sarah Johnson, an expert in tunnel construction, notes, “In tunneling, grouting is often the difference between success and failure. It’s crucial for controlling groundwater and stabilizing the ground before excavation. The use of new materials and automated systems is enhancing our ability to manage these risks more effectively than ever before.”
Analysis of Grouting Techniques in Modern Construction
Industry trends indicate a growing preference for jet grouting and chemical grouting in large-scale infrastructure projects, particularly in urban areas where space is limited, and ground conditions are complex. These techniques offer the precision and adaptability needed to meet the stringent requirements of modern construction, ensuring safety, stability, and long-term performance.
Practical Tips for Successful Grouting in Foundation Projects
For engineers and contractors involved in foundation projects, the following tips can help ensure the success of grouting operations:
Key Considerations for Project Managers
- Conduct thorough site assessments: Understand the ground conditions, water table, and potential risks before selecting a grouting technique.
- Choose the right grout: Select a grout material that is appropriate for the soil type and project requirements.
- Monitor the process closely: Use real-time monitoring tools to track grout flow, pressure, and distribution during the injection process.
- Plan for contingencies: Be prepared to adjust the grouting strategy if unexpected conditions arise during the operation.
Best Practices for Contractors
- Ensure proper equipment maintenance: Regularly inspect and maintain grouting equipment to avoid breakdowns during critical operations.
- Train personnel adequately: Provide comprehensive training to workers on the specific grouting techniques and safety protocols relevant to the project.
- Follow safety protocols: Prioritize safety by adhering to industry standards and regulations, particularly when working with chemical grouts or high-pressure systems.
Common Mistakes to Avoid
- Overlooking site-specific factors: Failing to account for unique ground conditions can lead to ineffective grouting and potential project delays.
- Inadequate quality control: Skimping on testing and monitoring can result in poor grout distribution and compromised foundation stability.
- Neglecting environmental impact: Ignoring the potential environmental effects of grouting, such as groundwater contamination, can lead to regulatory issues and long-term damage.
Frequently Asked Questions (FAQs)
To provide further clarity on the role of grouting in foundation engineering, here are some frequently asked questions:
What are the most common types of grouting?
The most common types of grouting include cementitious grouting, chemical grouting, compaction grouting, jet grouting, and permeation grouting. Each technique is suited to specific soil conditions and project requirements.
How do I choose the right grouting technique for my project?
Choosing the right grouting technique depends on several factors, including the soil type, groundwater conditions, the specific objectives of the project, and any potential environmental concerns. A thorough site assessment and consultation with a geotechnical engineer are essential for making the right decision.
What are the cost implications of grouting in foundation engineering?
The cost of grouting can vary significantly depending on the technique used, the scale of the project, and the complexity of the site conditions. While some grouting methods may be more expensive upfront, they can offer long-term savings by improving foundation stability and reducing the need for future repairs.
How does grouting impact the long-term stability of structures?
Grouting enhances the long-term stability of structures by improving the load-bearing capacity of the soil, reducing permeability, and preventing settlement. Properly executed grouting can extend the lifespan of a foundation and reduce the risk of structural failure over time.
Grouting is an indispensable technique in foundation engineering, offering solutions to a wide range of challenges associated with soil stability, water control, and structural integrity. From traditional cementitious grouting to advanced jet grouting and chemical methods, the versatility and effectiveness of grouting make it a critical tool in modern construction. As innovations continue to emerge, grouting techniques are becoming more efficient, environmentally friendly, and capable of addressing increasingly complex engineering problems.
In conclusion, the future of grouting in foundation engineering looks promising, with ongoing advancements that will continue to enhance its applications and benefits. By understanding the different grouting techniques, their applications, and the associated challenges, engineers and contractors can ensure that their projects are built on a solid foundation, capable of withstanding the test of time.
